LMVZ4411
LMVZ4411
LMVZ990-IR
LMVZ990-IR| Model | Format Size (Inch) | Focal Length | Iris Range (F-stop) |
Focusing Range (m) | Mount | Field Angle(H×V) | Size(mm)(∞) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4/3 | 1.2 | 1.1 | 1 | 1/1.2 | 2/3 | 1/1.8 | 1/2 | 1/3 | |||||||
| LMVZ4411 | - | - | - | - | - | - | ● | ● | ● | 4.4~11(2.5×) | F1.6〜F16 | 0.3〜∞ | C | W76.6×61.2/T36.7×28.0 | Φ45×56.5 |
| LMVZ990-IR | - | - | - | - | - | - | - | ● | ● | 9~90(10×) | F1.8〜F16 | 0.3〜∞ | C | W41.1×30.3/T4.2×3.1 | Φ45×93 |
Images may differ from the actual product.

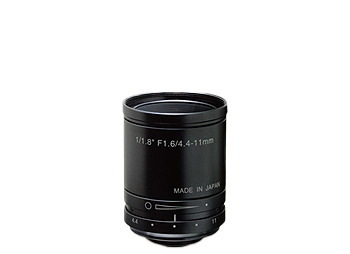

| Model | LMVZ4411 | |
|---|---|---|
| Focal Length | 4.4~11(2.5×) | |
| Image Size (mm) | 7.2×5.4(Φ9) | |
| Iris Range (F-stop) |
F1.6〜F16 | |
| Focusing Range (m) | 0.3〜∞ | |
| Control | Iris | Manual |
| Focus | Manual | |
| Angle of View (Degrees) | 1/1.8 Inch | W76.6×61.2/T36.7×28.0 |
| 1/2 Inch | W70.2×55.5/T32.9×25.0 | |
| 1/3 Inch | W55.5×43.0/T25.0×18.9 | |
| TV Distortion (%) | W−0.2/T0.4 | |
| Back Focus in Air (mm) | W8.8/T14.5 | |
| Mount | C Mount | |
| Size(mm)(∞) | Φ45×56.5 | |
| Weight (g) | 125 | |
| Temperature Range | −10°C~+50°C | |

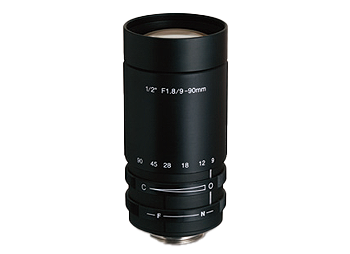

| Model | LMVZ990-IR | |
|---|---|---|
| Focal Length | 9~90(10×) | |
| Image Size (mm) | 6.4×4.8(Φ8) | |
| Iris Range (F-stop) |
F1.8〜F16 | |
| Focusing Range (m) | 0.3〜∞ | |
| Control | Iris | Manual |
| Focus | Manual | |
| Angle of View (Degrees) | 1/2 Inch | W41.1×30.3/T4.2×3.1 |
| 1/3 Inch | W30.3×22.5/T3.1×2.4 | |
| TV Distortion (%) | W−4.3/T0.3 | |
| Back Focus in Air (mm) | W15.4/T11.7 | |
| Mount | C Mount | |
| Size(mm)(∞) | Φ45×93 | |
| Weight (g) | 194 | |
| Temperature Range | −10°C~+50°C | |
