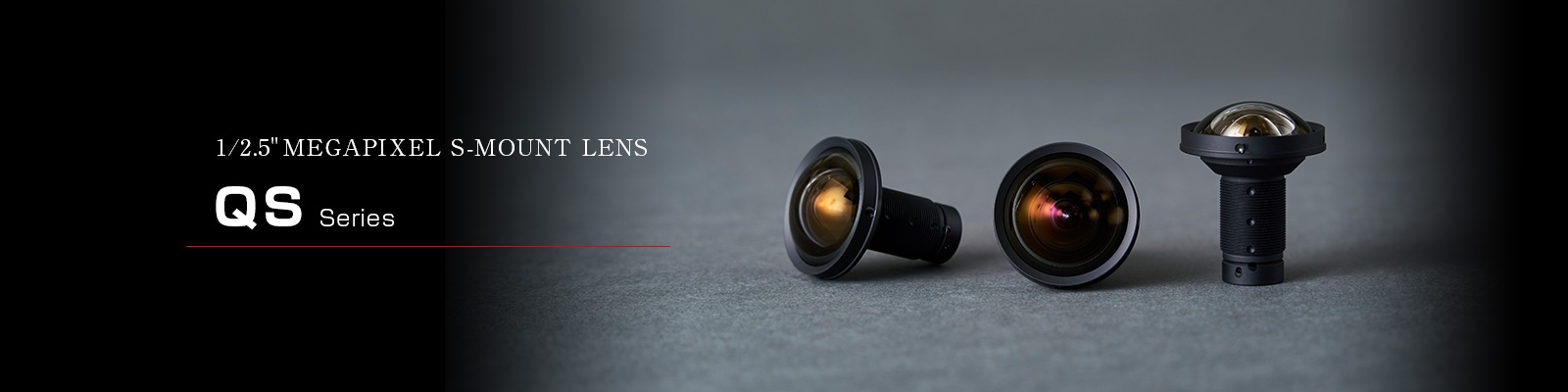

QSシリーズ

Feature

Specification

All products specifications

Model Format Size (Inch) Focal Length Iris Range
(F-stop)		 Focusing Range (m) Mount Field Angle(H×V) Size(mm)(∞)
1 1/1.2 2/3 1/1.8 1/2 1/2.5 1/2.8 1/3
LM1.7QS25​ - - - - - ● ● ● 1.7 F2.5 0.1〜∞ S (M12×0.5) 118.1×102.8 Φ26.5×32.83​
LM1.7QS40​ - - - - - ● ● ● 1.7 F4​.0 0.1〜∞ S (M12×0.5) 118.1×102.8 Φ26.5×32.83​
LM1.7QS56 - - - - - ● ● ● 1.7 F5.6 0.1〜∞ S (M12×0.5) 118.1×102.8 Φ26.5×32.83​
LM3QS28 - - - - - ● ● ● 3 F2.8 0.1〜∞ S (M12×0.5) 86.7×70.6 Φ16×22.3
LM3QS40 - - - - - ● ● ● 3 F4.0 0.1〜∞ S (M12×0.5) 86.7×70.6 Φ16×22.3
LM3QS56 - - - - - ● ● ● 3 F5.6 0.1〜∞ S (M12×0.5) 86.7×70.6 Φ16×22.3

Lineup

Images may differ from the actual product.

LM1.7QS25​NEW

LM1.7QS25​
  • 1.7mm
  • LO-DIS
Function Icons

Model LM1.7QS25​
Focal Length 1.7
Image Size (mm) 5.7×4.3(φ7.1)
Iris Range
(F-stop)		 F2.5
Focusing Range (m) 0.1〜∞
Angle of View (Degrees) 1/2.5 Inch 118.1×102.8
1/2.8 Inch 115.1×89.1
1/3 Inch 109.1×93.0
Resolution (center,corner) 160lp/mm, 100lp/mm​
TV Distortion (%) -0.32​
Back Focus in Air (mm) 4.0​
Mount S Mount (M12×0.5)
Size(mm)(∞) Φ26.5×32.83​
Weight (g) 18
Temperature Range −10°C~+50°C

LM1.7QS40​NEW

LM1.7QS40​
  • 1.7mm
  • LO-DIS
Function Icons

Model LM1.7QS40​
Focal Length 1.7
Image Size (mm) 5.7×4.3(φ7.1)
Iris Range
(F-stop)		 F4​.0
Focusing Range (m) 0.1〜∞
Angle of View (Degrees) 1/2.5 Inch 118.1×102.8
1/2.8 Inch 115.1×89.1
1/3 Inch 109.1×93.0
Resolution (center,corner) 160lp/mm, 100lp/mm​
TV Distortion (%) -0.32​
Back Focus in Air (mm) 4.0​
Mount S Mount (M12×0.5)
Size(mm)(∞) Φ26.5×32.83​
Weight (g) 18
Temperature Range −10°C~+50°C

LM1.7QS56NEW

LM1.7QS56
  • 1.7mm
  • LO-DIS
Function Icons

Model LM1.7QS56
Focal Length 1.7
Image Size (mm) 5.7×4.3(φ7.1)
Iris Range
(F-stop)		 F5.6
Focusing Range (m) 0.1〜∞
Angle of View (Degrees) 1/2.5 Inch 118.1×102.8
1/2.8 Inch 115.1×89.1
1/3 Inch 109.1×93.0
Resolution (center,corner) 160lp/mm, 100lp/mm​
TV Distortion (%) -0.32​
Back Focus in Air (mm) 4.0​
Mount S Mount (M12×0.5)
Size(mm)(∞) Φ26.5×32.83​
Weight (g) 18
Temperature Range −10°C~+50°C

LM3QS28

LM3QS28
  • 3mm
  • LO-DIS
Function Icons

Model LM3QS28
Focal Length 3
Image Size (mm) 5.7×4.28(Φ7.13)
Iris Range
(F-stop)		 F2.8
Focusing Range (m) 0.1〜∞
Angle of View (Degrees) 1/2.5 Inch 86.7×70.6
1/2.8 Inch 83.3×58.2
1/3 Inch 76.9×61.6
Resolution (center,corner) 160lp/mm, 125lp/mm
TV Distortion (%) 0.02
Back Focus in Air (mm) 2.6
Mount S Mount (M12×0.5)
Size(mm)(∞) Φ16×22.3
Weight (g) 6
Temperature Range −10°C~+50°C

LM3QS40

LM3QS40
  • 3mm
  • LO-DIS
Function Icons

Model LM3QS40
Focal Length 3
Image Size (mm) 5.7×4.28(Φ7.13)
Iris Range
(F-stop)		 F4.0
Focusing Range (m) 0.1〜∞
Angle of View (Degrees) 1/2.5 Inch 86.7×70.6
1/2.8 Inch 83.3×58.2
1/3 Inch 76.9×61.6
Resolution (center,corner) 160lp/mm, 125lp/mm
TV Distortion (%) 0.02
Back Focus in Air (mm) 2.6
Mount S Mount (M12×0.5)
Size(mm)(∞) Φ16×22.3
Weight (g) 6
Temperature Range −10°C~+50°C

LM3QS56

LM3QS56
  • 3mm
  • LO-DIS
Function Icons

Model LM3QS56
Focal Length 3
Image Size (mm) 5.7×4.28(Φ7.13)
Iris Range
(F-stop)		 F5.6
Focusing Range (m) 0.1〜∞
Angle of View (Degrees) 1/2.5 Inch 86.7×70.6
1/2.8 Inch 83.3×58.2
1/3 Inch 76.9×61.6
Resolution (center,corner) 160lp/mm, 125lp/mm
TV Distortion (%) 0.02
Back Focus in Air (mm) 2.6
Mount S Mount (M12×0.5)
Size(mm)(∞) Φ16×22.3
Weight (g) 6
Temperature Range −10°C~+50°C
