| Model | Format Size (Inch) | Focal Length | Iris Range (F-stop) |
Focusing Range (m) | Mount | Field Angle(H×V) | Size(mm)(∞) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1/1.2 | 2/3 | 1/1.8 | 1/2 | 1/2.5 | 1/2.8 | 1/3 | |||||||
| LM5NS21 | - | - | - | ● | ● | ● | - | - | 5 | F2.1 | 0.1〜∞ | S (M12×0.5) | 72.4×57.0 | Φ21.5×29.9 |
| LM5NS28 | - | - | - | ● | ● | ● | - | - | 5 | F2.8 | 0.1〜∞ | S (M12×0.5) | 72.4×57.0 | Φ21.5×29.9 |
| LM5NS40 | - | - | - | ● | ● | ● | - | - | 5 | F4.0 | 0.1〜∞ | S (M12×0.5) | 72.4×57.0 | Φ21.5×29.9 |
| LM5NS56 | - | - | - | ● | ● | ● | - | - | 5 | F5.6 | 0.1〜∞ | S (M12×0.5) | 72.4×57.0 | Φ21.5×29.9 |

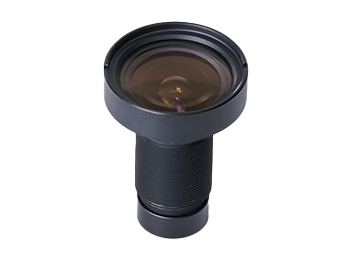

Images may differ from the actual product.
| Model | LM5NS21 | |
|---|---|---|
| Focal Length | 5 | |
| Image Size (mm) | 7.2×5.4(φ9) | |
| Iris Range (F-stop) |
F2.1 | |
| Focusing Range (m) | 0.1〜∞ | |
| Angle of View (Degrees) | 1/1.8 Inch | 72.4×57.0 |
| 1/2 Inch | 65.9×51.3 | |
| 1/2.5 Inch | 59.8×46.2 | |
| Resolution (center,corner) | 200lp/mm, 100lp/mm | |
| TV Distortion (%) | -0.51 | |
| Back Focus in Air (mm) | 5.8 | |
| Mount | S Mount (M12×0.5) | |
| Size(mm)(∞) | Φ21.5×29.9 | |
| Weight (g) | 12 | |
| Temperature Range | −10°C~+50°C | |
| Model | LM5NS28 | |
|---|---|---|
| Focal Length | 5 | |
| Image Size (mm) | 7.2×5.4(φ9) | |
| Iris Range (F-stop) |
F2.8 | |
| Focusing Range (m) | 0.1〜∞ | |
| Angle of View (Degrees) | 1/1.8 Inch | 72.4×57.0 |
| 1/2 Inch | 65.9×51.3 | |
| 1/2.5 Inch | 59.8×46.2 | |
| Resolution (center,corner) | 200lp/mm, 100lp/mm | |
| TV Distortion (%) | -0.51 | |
| Back Focus in Air (mm) | 5.8 | |
| Mount | S Mount (M12×0.5) | |
| Size(mm)(∞) | Φ21.5×29.9 | |
| Weight (g) | 12 | |
| Temperature Range | −10°C~+50°C | |
| Model | LM5NS40 | |
|---|---|---|
| Focal Length | 5 | |
| Image Size (mm) | 7.2×5.4(φ9) | |
| Iris Range (F-stop) |
F4.0 | |
| Focusing Range (m) | 0.1〜∞ | |
| Angle of View (Degrees) | 1/1.8 Inch | 72.4×57.0 |
| 1/2 Inch | 65.9×51.3 | |
| 1/2.5 Inch | 59.8×46.2 | |
| Resolution (center,corner) | 200lp/mm, 100lp/mm | |
| TV Distortion (%) | -0.51 | |
| Back Focus in Air (mm) | 5.8 | |
| Mount | S Mount (M12×0.5) | |
| Size(mm)(∞) | Φ21.5×29.9 | |
| Weight (g) | 12 | |
| Temperature Range | −10°C~+50°C | |
| Model | LM5NS56 | |
|---|---|---|
| Focal Length | 5 | |
| Image Size (mm) | 7.2×5.4(φ9) | |
| Iris Range (F-stop) |
F5.6 | |
| Focusing Range (m) | 0.1〜∞ | |
| Angle of View (Degrees) | 1/1.8 Inch | 72.4×57.0 |
| 1/2 Inch | 65.9×51.3 | |
| 1/2.5 Inch | 59.8×46.2 | |
| Resolution (center,corner) | 200lp/mm, 100lp/mm | |
| TV Distortion (%) | -0.51 | |
| Back Focus in Air (mm) | 5.8 | |
| Mount | S Mount (M12×0.5) | |
| Size(mm)(∞) | Φ21.5×29.9 | |
| Weight (g) | 12 | |
| Temperature Range | −10°C~+50°C | |
