LMZ1166M3-R [*Available only in Japan]
NEW LMZ1166M3-R [*Available only in Japan]*Build-to-order model
Visible Light cannot pass the Radiation-Exposed lens due to the coloration of the glass material
LM15FC-R is available in radiation environments for a long period due to the prevention of coloration by the Radiation-Resistance glass material
| Model | Format Size (Inch) | Focal Length | Iris Range (F-stop) |
Focusing Range (m) | Mount | Field Angle(H×V) | Size(mm)(∞) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4/3 | 1.2 | 1.1 | 1 | 1/1.2 | 2/3 | 1/1.8 | 1/2 | 1/3 | |||||||
| LMZ1166M3-R [*Available only in Japan] | - | - | - | - | - | ● | ● | ● | ● | F2.8-Close | 1.0〜∞ | C | 45.9×34.8 7.7×5.8 |
82x85x140.1 | |

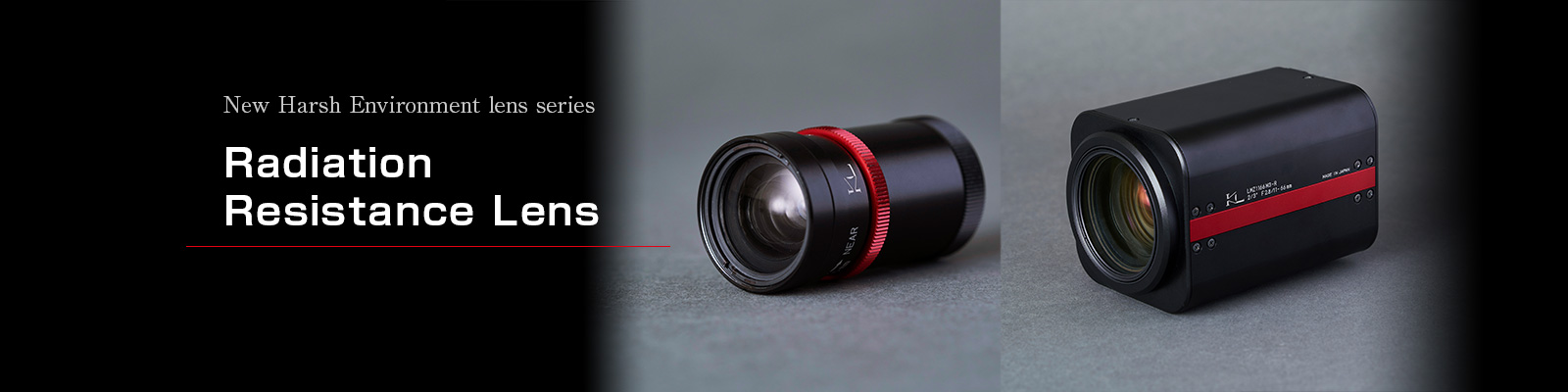

Images may differ from the actual product.
| Model | LMZ1166M3-R [*Available only in Japan] | |
|---|---|---|
| Focal Length | 11-66 | |
| Image Size (mm) | Φ12.2 | |
| Iris Range (F-stop) |
F2.8-Close | |
| Focusing Range (m) | 1.0〜∞ | |
| Control | Iris | motorized |
| Focus | motorized | |
| Zoom | motorized | |
| Angle of View (Degrees) | 2/3 Inch | WIDE 45.9×34.8／TELE 7.7×5.8 |
| 1/2 Inch | WIDE 33.8×25.5／TELE 5.7×4.3 | |
| TV Distortion (%) | - | |
| Back Focus in Air (mm) | 15.5 | |
| Mount | C Mount | |
| Size(mm)(∞) | 82x85x140.1 | |
| Weight (g) | 1200 | |
| Temperature Range | −10°C~+50°C | |
*Available only in Japan
