LMZ45T3 [海外限定モデル]

Feature

Specification

All products specifications

Model Format Size (Inch) Focal Length Iris Range
(F-stop)		 Focusing Range (m) Mount Field Angle(H×V) Size(mm)(∞)
4/3 1.2 1.1 1 1/1.2 2/3 1/1.8 1/2 1/3
LMZ45T3 [*Built-to-order Models] - - - - - ● ● ● ● F2.5〜Close 0.115〜∞ C W27.3×20.5/T4.7×3.6 Φ62×171.7

Lineup

Images may differ from the actual product.

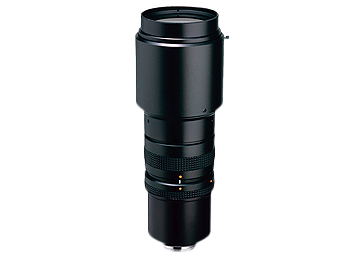

LMZ45T3 [*Built-to-order Models]

LMZ45T3[海外限定モデル]
  • 18〜108(6×)mm
Function Icons

Model LMZ45T3
Magnification inf〜1.1×
Zoom magnification 6×
Image Size(mm) 8.8×6.6(Φ11)
Close up lens 3Dpt.un-installed 3Dpt.installed
Shooting Magnification Inf〜0.72× 0.053〜1.1×
W.D (mm) Inf〜M.O.D=185 WD=330〜115
Iris Range (F-stop) F2.5〜Close
Object side N.A. – –
Image side N.A. – –
TV Distortion -0.3% -0.1%
Shooting
Range
(mm)		 2/3 inch inf wide 27.3×20.5° WD=310 wide 165.4×123.8
inf tele 4.7×3.5° WD=310 tele 28.3×21.3
WD=310 wide 67.0×50.1 WD=150 wide 43.8×32.8
WD=310 tele 11.7×9.0 WD=150 tele 7.6×5.9
1/2 Inch inf wide 19.9×14.9° WD=310 wide 120.0×89.8
inf tele 3.4×2.6° WD=310 tele 20.7×15.6
WD=310 wide 48.6×36.5 WD=150 wide 31.8×23.8
WD=310 tele 8.7×6.6 WD=150 tele 5.7×4.3
1/3 Inch inf wide 14.9×11.2° WD=310 wide 89.8×67.4
inf tele 2.6×2.0° WD=310 tele 15.6×11.7
WD=310 wide 36.5×27.3 WD=150 wide 23.8×17.9
WD=310 tele 6.6×5.0 WD=150 tele 4.3×3.3
Mount C-Mount
Control Iris Manual
focus Manual
Zoom Manual
Filter Thread(mm) M52×P0.75
Size(mm)(∞) Φ62×171.7
Weight(g) 595
Temperature Range -10℃〜+50℃

*Built-to-order Models
