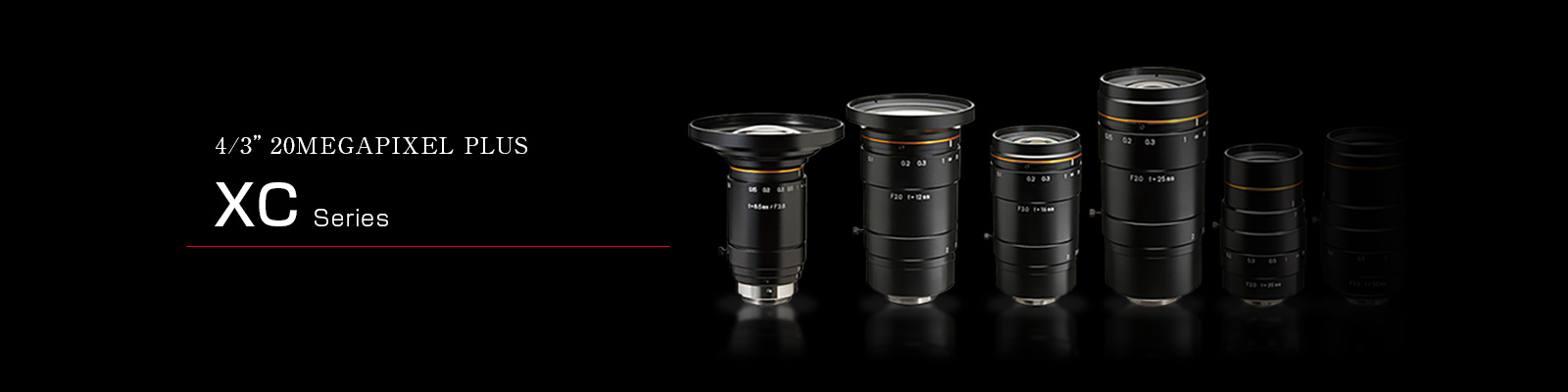

XC Series
| Model | Format Size (Inch) | Focal Length | Iris Range (F-stop) |
Focusing Range (m) | Mount | Field Angle(H×V) | Size(mm)(∞) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4/3 | 1.2 | 1.1 | 1 | 1/1.2 | 2/3 | 1/1.8 | 1/2 | 1/3 | |||||||
| LM8XC | ● | ● | ● | ● | ● | ● | ● | ● | ● | 8.5 | F2.8〜F22 | 0.1〜∞ | C | 93.5×77.1 | Φ74×82.5 |
| LM12XC | ● | ● | ● | ● | ● | ● | ● | ● | ● | 12 | F2.0〜F22 | 0.1〜∞ | C | 74.9×59.6 | Φ57×85 |
| LM16XC | ● | ● | ● | ● | ● | ● | ● | ● | ● | 16 | F2.0〜F22 | 0.1〜∞ | C | 60.6×47.2 | Φ45×79.5 |
| LM25XC | ● | ● | ● | ● | ● | ● | ● | ● | ● | 25 | F2.0〜F16 | 0.15〜∞ | C | 40.9×31.1 | Φ45×89 |
| LM35XC | ● | ● | ● | ● | ● | ● | ● | ● | ● | 35 | F2.0〜F16 | 0.2〜∞ | C | 29.6×22.4 | Φ45×74 |
| LM50XC | ● | ● | ● | ● | ● | ● | ● | ● | ● | 50 | F2.0〜F22 | 0.3〜∞ | C | 20.6×15.7 | Φ47×78 |
Feature
- Large image size of Φ23mm incorporated within a C-mount design.
- Megapixel resolution is maintained throughout the entire image even when the iris is fully opened.
- High precision aspherical lens greatly reduces distortion and produces a high-definition picture.
- The LM8XC generates a very wide 93.5° horizontal angle of view.
- Kowa’s floating mechanism system virtually eliminates optical
aberrations from close distance to infinity.
