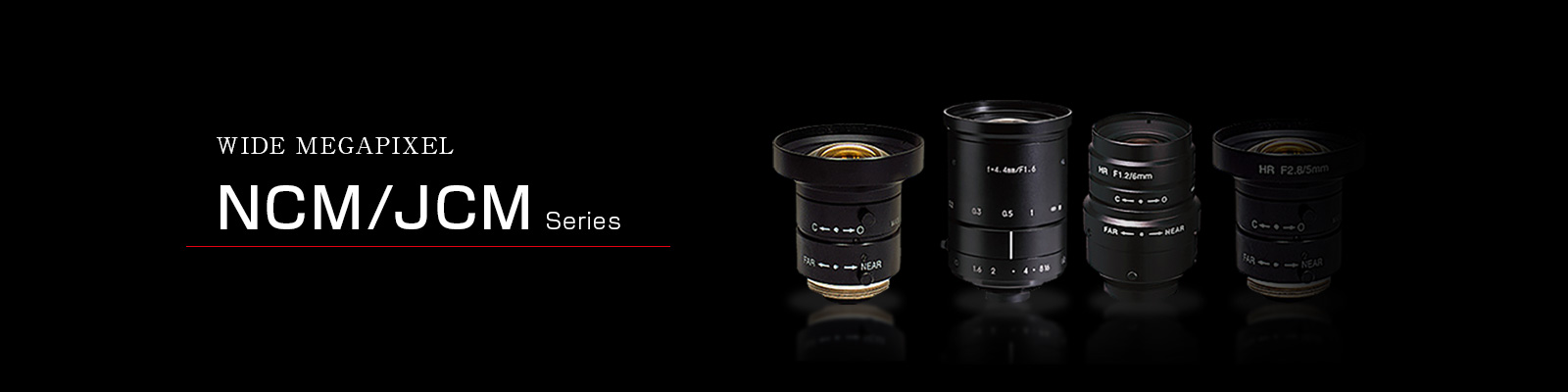

NCM / JCM Series
| Model | Format Size (Inch) | Focal Length | Iris Range (F-stop) |
Focusing Range (m) | Mount | Field Angle(H×V) | Size(mm)(∞) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4/3 | 1.2 | 1.1 | 1 | 1/1.2 | 2/3 | 1/1.8 | 1/2 | 1/3 | |||||||
| LM3NCM | - | - | - | - | - | - | ● | ● | ● | 3.5 | F2.4〜F14 | 0.1〜∞ | C | 89.0×73.8 | Φ42×38.2 |
| LM6NCM | - | - | - | - | - | - | ◇ | ● | ● | 6 | F1.2〜Close | 0.1〜∞ | C | 56.2×43.5 | Φ34×45.8 |
| LM5JCM | - | - | - | - | - | ● | ● | ● | ● | 5 | F2.8〜F16 | 0.1〜∞ | C | 82.4×66.9 | Φ42×38.2 |
Products
Feature
- Super wide optical design
- Large angle of view
- Expansion angle
(Horizontal angle 82degree, Vertical angle 66degree)† 2/3″ model: LM5JCM, 1/1.8″ model: LM3NCM
Low distortion
- Reduces the distortion to corner
† LM5JCM: Under 0.5%, LM3NCM: Under 0.4% (TV distortion)
High quality
- Adapts to 2 megapixcel cameras
- Improves center and corner resolution
- High transmittance
