JCM-WP Series
| Model | Format Size (Inch) | Focal Length | Iris Range (F-stop) |
Focusing Range (m) | Mount | Field Angle(H×V) | Size(mm)(∞) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4/3 | 1.2 | 1.1 | 1 | 1/1.2 | 2/3 | 1/1.8 | 1/2 | 1/3 | |||||||

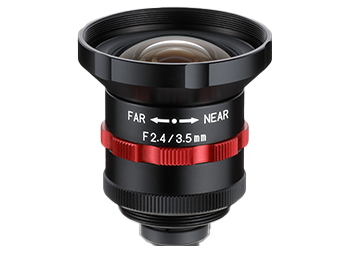

| LM3NCM-WP | - | - | - | - | - | - | ● | ● | ● | 3.5 | F2.4/F4/F5.6/F8 | 0.1〜∞ | C | 89.0×73.8 | Φ43×38.4 |

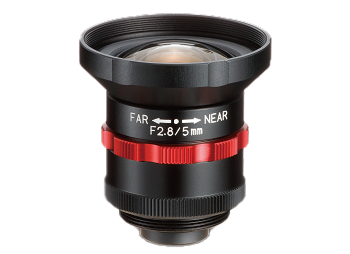

| LM5JCM-WP | - | - | - | - | - | ● | ● | ● | ● | 5 | F2.8/F4/F5.6/F8 | 0.1〜∞ | C | 82.4×66.9 | Φ43×38.3 |

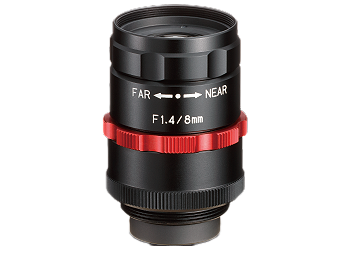

| LM8JCM-WP | - | - | - | - | - | ● | ● | ● | ● | 8 | F1.4/F4/F8/F16 | 0.1〜∞ | C | 56.5×43.9 | Φ33×41.6 |

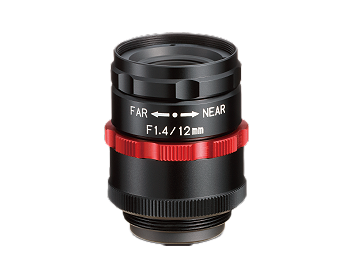

| LM12JCM-WP | - | - | - | - | - | ● | ● | ● | ● | 12 | F1.4/F4/F8/F16 | 0.15〜∞ | C | 38.3×29.1 | Φ33×36.5 |

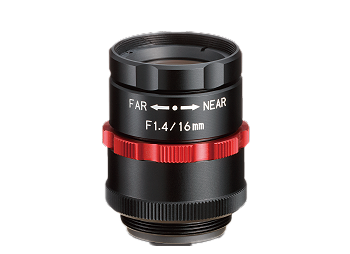

| LM16JCM-WP | - | - | - | - | - | ● | ● | ● | ● | 16 | F1.4/F4/F8/F16 | 0.2〜∞ | C | 30.0×22.7 | Φ33×36.5 |

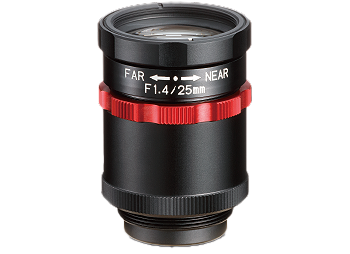

| LM25JCM-WP | - | - | - | - | - | ● | ● | ● | ● | 25 | F1.4/F4/F8/F16 | 0.2〜∞ | C | 19.6×14.8 | Φ33×39.7 |

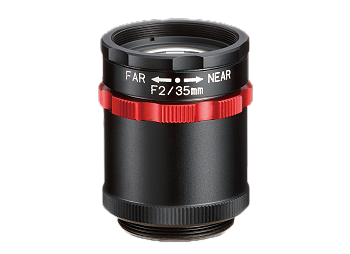

| LM35JCM-WP | - | - | - | ◇ | ◇ | ● | ● | ● | ● | 35 | F2/F4/F8/F16 | 0.2〜∞ | C | 14.4×10.8 | Φ33×38.8 |

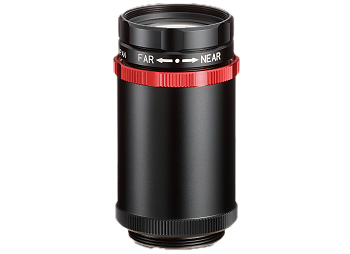

| LM50JCM-WP | - | ◇ | ◇ | ◇ | ◇ | ● | ● | ● | ● | 50 | F2.8/F4/F8/F16 | 0.2〜∞ | C | 9.6×7.2 | Φ33×56.2 |
◇: Suitable
All products specifications
Feature
The JCM-WP series is a water and dust resistant high-resolution lens with a design based on Kowa’s
ruggedized megapixel JCM-V lenses.
*Performance may no be secured depending on environment and condition to be used.
*Not intended for underwater use.
*Refer to the instructions and our web page for more information.
- Water repellency and easy cleaning of the front lens surface by applying Kowa’s special coating.
- Two way reversible nut is utilized instead of thumb screws in order to tightly lock the focus adjustment ring in place.
- Utilizing two way reversible nut contributes to the prevention of screw dropping troubles.
- Interchangeable iris plates are used to select the F-stop.
- All internal glass elements are glued to the inside housing to improve stability.
- Equivalent to 2 megapixels performance
-
Interchangeable Iris Plates
1. The JCM-WP series uses interchangeable iris plates instead of mechanical iris diaphragms with moving blades. You can choose from four iris plates to adjust the F-stop.
-
Focus Adjustment Procedure
2. Unscrew the bottom ring of the outside body to adjust the focus to optimal position.
3. Screw the red two way reversible nut on the center body towards the bottom ring to lock in the focus.
