JC5M-IR Series
| Model | Format Size (Inch) | Focal Length | Iris Range (F-stop) |
Focusing Range (m) | Mount | Field Angle(H×V) | Size(mm)(∞) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4/3 | 1.2 | 1.1 | 1 | 1/1.2 | 2/3 | 1/1.8 | 1/2 | 1/3 | |||||||

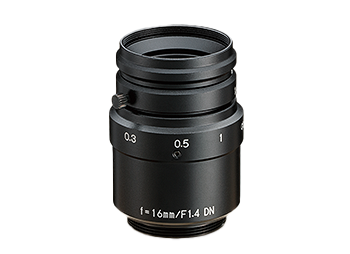

| LM16JC5M-IR | - | - | - | - | - | ● | ● | ● | ● | 16 | F1.4〜F16 | 0.3〜∞ | C | 30.9×23.2 | Φ34×44.5 |

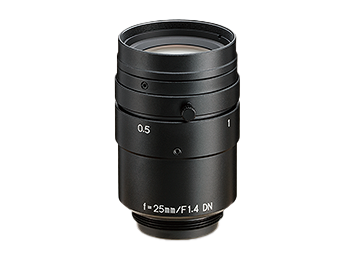

| LM25JC5M-IR | - | - | - | - | ◇ | ● | ● | ● | ● | 25 | F1.4〜F16 | 0.3〜∞ | C | 20.1×15.1 | Φ34×47 |

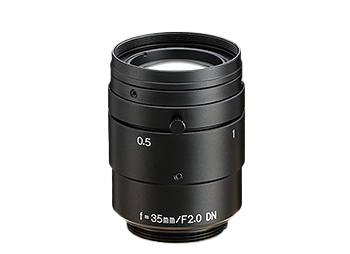

| LM35JC5M-IR | - | - | - | - | ◇ | ● | ● | ● | ● | 35 | F2.0〜F22 | 0.3〜∞ | C | 13.9×10.5 | Φ34×43 |
◇: Suitable
All products specifications
Feature
- 5 megapixel lens
- IR corrected design
- Fast F-stop of F1.4
*LM35JC5M-IR is F2.0
- Low distortion
Reduction of visible-NIR focus shift
-
Visible design lens
-
IR Corrected design lens
