HC-VIS-SW Series
| Model | Format Size (Inch) | Focal Length | Iris Range (F-stop) |
Focusing Range (m) | Mount | Field Angle(H×V) | Size(mm)(∞) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4/3 | 1.2 | 1.1 | 1 | 1/1.2 | 2/3 | 1/1.8 | 1/2 | 1/3 | |||||||

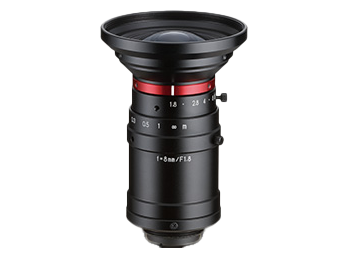

| LM8HC-VIS-SW | - | - | - | ● | ● | ● | ● | ● | ● | 8 | F1.8〜F16 | 0.2〜∞ | C | 81.3×63.5 | Φ58×79.5 |

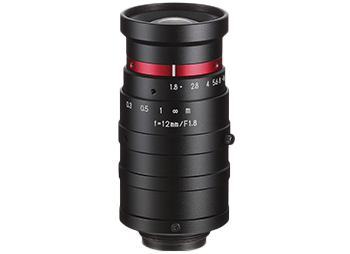

| LM12HC-VIS-SW | - | - | - | ● | ● | ● | ● | ● | ● | 12 | F1.8〜F16 | 0.2〜∞ | C | 58.0×44.5 | Φ38.5×73.5 |

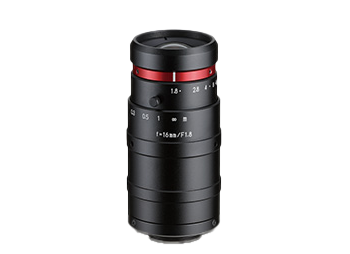

| LM16HC-VIS-SW | - | - | - | ● | ● | ● | ● | ● | ● | 16 | F1.8〜F16 | 0.2〜∞ | C | 44.2×33.6 | Φ39×78.15 |
| LM25HC-VIS-SW | - | - | ◇ | ● | ● | ● | ● | ● | ● | 25 | F1.8〜F16 | 0.2〜∞ | C | 29.2×22.0 | Φ39×66.5 |

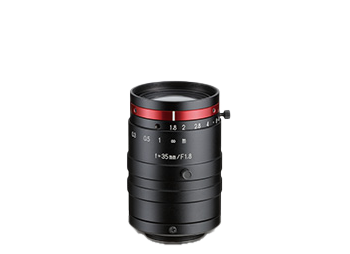

| LM35HC-VIS-SW | - | ◇ | ◇ | ● | ● | ● | ● | ● | ● | 35 | F1.8〜F16 | 0.2〜∞ | C | 20.4×15.4 | Φ39×56.42 |
| LM50HC-VIS-SW | ◇ | ◇ | ◇ | ● | ● | ● | ● | ● | ● | 50 | F2.5〜F16 | 0.5〜∞ | C | 14.6×11.0 | Φ39.5×71 |
◇: Suitable
All products specifications
Feature
- A maximum of 12 megapixel and 3.1μm performance can be found at select wavelength ranges.
- Virtually zero focus shift from visible to 2000nm wavelength range.
- Utilizes ultra wideband multi-coatings to increase transmission.
- Special extra low dispersion (XD) glass significantly reduces chromatic aberration, otherwise known as color fringing.
- Low distortion.
- Includes Kowa’s signature floating mechanism design that eliminates optical aberrations from close distance to infinity.
KOWA SWIR Wavelength Range Compatible Lenses
| Model | Wavelength | Sensor Size | Specification | Focal Length | Focus Shift-Corrected |
|---|---|---|---|---|---|
| HC-VIS-SW | 450～2000nm | 1inch 12MP | Visible～SWIR（New VIS-SWIR Coating） | 12,25,50mm | ✔ |
| JC5M-IR | 400～1400nm | 2/3inch 5MP | Visible～SWIR | 16,25,35mm | ✔ |
| HC-SW | 1000～1800nm | 1inch 1 MP | SWIR | 8,12,16,25,35,50mm |
Design of IR-Corrected Lenses
In addition to having high transmission, Kowa’s HC-VIS-SW series are IR-Corrected. The primary benefit for IR-Correction is that it allows an image to remain in focus even when the wavelength changes from visible to infrared or vice versa. With a standard visible, NIR or SWIR lens, a focus shift will occur due to differences in the refractive index if the wavelength fluctuates. However, by incorporating extra low dispersion (XD) glass and carefully aligning all internal lens elements, such focus shift problems are eliminated.
LM12HC-VIS-SW Transmission
Virtually Zero Focus Shift Design
Applications
