HC-SW Series
| Model | Format Size (Inch) | Focal Length | Iris Range (F-stop) |
Focusing Range (m) | Mount | Field Angle(H×V) | Size(mm)(∞) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4/3 | 1.2 | 1.1 | 1 | 1/1.2 | 2/3 | 1/1.8 | 1/2 | 1/3 | |||||||

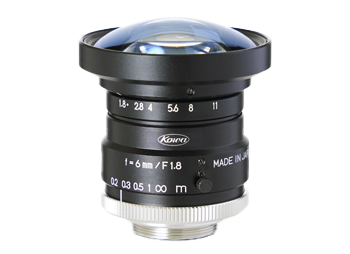

| LM6HC-SW | - | - | - | ● | ● | ● | ● | ● | - | 6 | F1.8〜F11 | 0.1〜∞ | C | 96.8×79.4 | Φ54×56.2 |

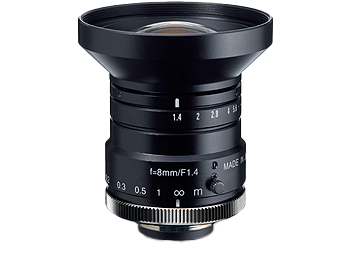

| LM8HC-SW | - | - | - | ● | ● | ● | ● | ● | ● | 8 | F1.4〜F16 | 0.1〜∞ | C | 79.4×63.0 | Φ57×58 |

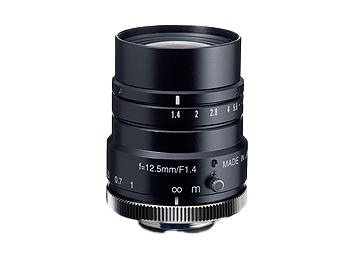

| LM12HC-SW | - | - | ◇ | ● | ● | ● | ● | ● | ● | 12.5 | F1.4〜F16 | 0.3〜∞ | C | 55.6×42.5 | Φ43×51.5 |

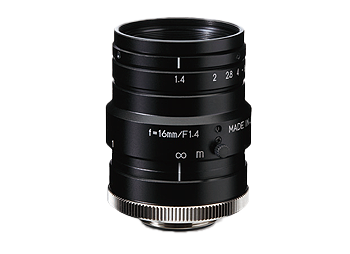

| LM16HC-SW | - | - | ◇ | ● | ● | ● | ● | ● | ● | 16 | F1.4〜F16 | 0.3〜∞ | C | 44.3×33.6 | Φ43×52.9 |

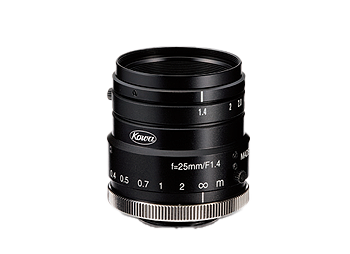

| LM25HC-SW | - | ◇ | ◇ | ● | ● | ● | ● | ● | ● | 25 | F1.4〜F16 | 0.3〜∞ | C | 29.3×22.0 | Φ43×43 |

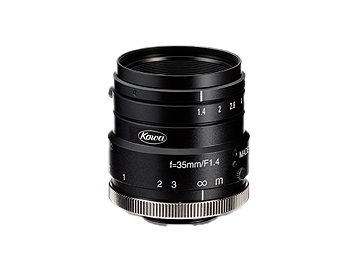

| LM35HC-SW | - | ◇ | ◇ | ● | ● | ● | ● | ● | ● | 35 | F1.4〜F16 | 0.3〜∞ | C | 20.9×15.8 | Φ43×43 |

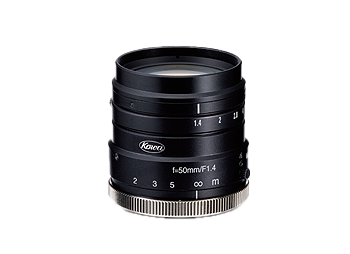

| LM50HC-SW | - | - | ◇ | ● | ● | ● | ● | ● | ● | 50 | F1.4〜F16 | 0.5〜∞ | C | 14.5×10.8 | Φ49×48 |
◇: Suitable
All products specifications
Feature
- Incorporating Kowa’s special coating technology, the 1″ format HC-SW series will maintains high transmission from 800nm to 1900nm.
- Designed for Near Infrared(NIR) and Short Wavelength Infrared (SWIR) applications.
