FC24M Series
| Model | Format Size (Inch) | Focal Length | Iris Range (F-stop) |
Focusing Range (m) | Mount | Field Angle(H×V) | Size(mm)(∞) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4/3 | 1.2 | 1.1 | 1 | 1/1.2 | 2/3 | 1/1.8 | 1/2 | 1/3 | |||||||

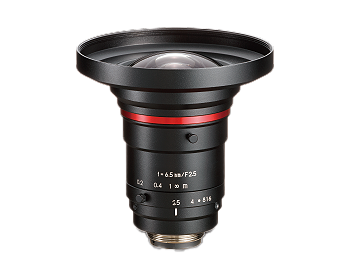

| LM6FC24M | - | - | ● | ● | ● | ● | ● | ● | ● | 6.5 | F2.5〜F16 | 0.1〜∞ | C | 95.7×78.7 | Φ84×79.1 |

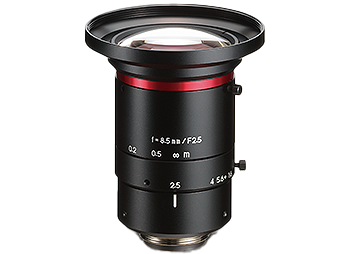

| LM8FC24M | - | - | ● | ● | ● | ● | ● | ● | ● | 8.5 | F2.5〜F16 | 0.1〜∞ | C | 79.2×63.8 | Φ64×73.3 |

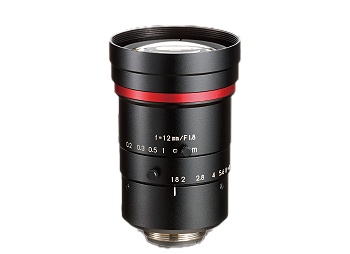

| LM12FC24M | - | ◇ | ● | ● | ● | ● | ● | ● | ● | 12 | F1.8〜F16 | 0.1〜∞ | C | 60.0×46.9 | Φ51×73.8 |

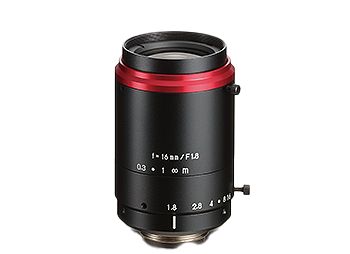

| LM16FC24M | - | ◇ | ● | ● | ● | ● | ● | ● | ● | 16 | F1.8〜F16 | 0.1〜∞ | C | 47.6×36.7 | Φ43×65.7 |

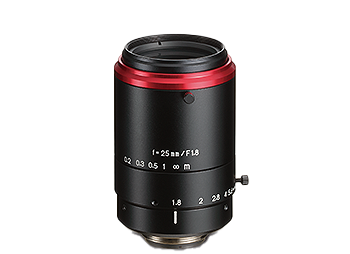

| LM25FC24M | - | ◇ | ● | ● | ● | ● | ● | ● | ● | 25 | F1.8〜F16 | 0.1〜∞ | C | 31.5×23.9 | Φ45×67.9 |

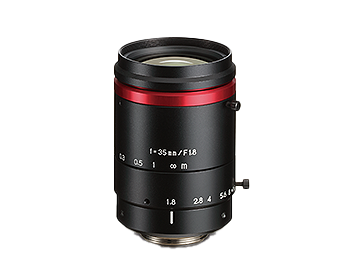

| LM35FC24M | - | ◇ | ● | ● | ● | ● | ● | ● | ● | 35 | F1.8〜F16 | 0.2〜∞ | C | 22.2×16.7 | Φ45×66 |

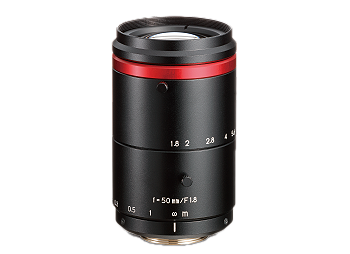

| LM50FC24M | - | ◇ | ● | ● | ● | ● | ● | ● | ● | 50 | F1.8〜F16 | 0.2〜∞ | C | 16.1×12.1 | Φ45×74.5 |

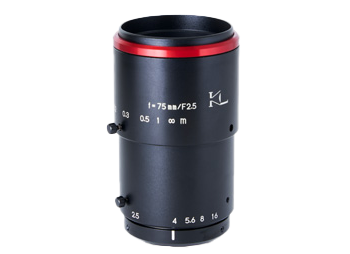

| LM75FC24M | - | ◇ | ● | ● | ● | ● | ● | ● | ● | 75 | F2.5〜F16 | 0.15〜∞ | C | 10.7×8.0 | Φ45×76.6 |

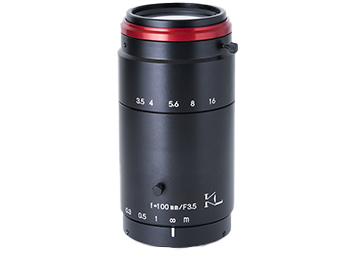

| LM100FC24M | - | ◇ | ● | ● | ● | ● | ● | ● | ● | 100 | F3.5〜F16 | 0.15〜∞ | C | 7.9×6.0 | Φ45×87.6 |
◇: Suitable
All products specifications
Feature
- 2.5μm pixel pitch high relolution compact lens.
- Compatible with maximum 1.2inch format size.
*Except for LM6FC24M and LM8FC24M - Excellent corner brightness and low distortion.
- Kowa’s floating mechanism system virtually eliminates optical aberrations from close distance to infinity.
- Kowa’s wide-band multi-coating effectively decreases ghost and flare and produces a high transmission from the visible to NIR wavelength range.
- New Macro lens series of 75mm and 100mm Up to ×0.75 magnification
High performance of 1.0 magnification with using the close-up ring
-
QR Code -Traceability and Quality Control-
A QR code is marked on each lens. High traceability and quality control are achieved by managing the manufacturing data of each lens.
