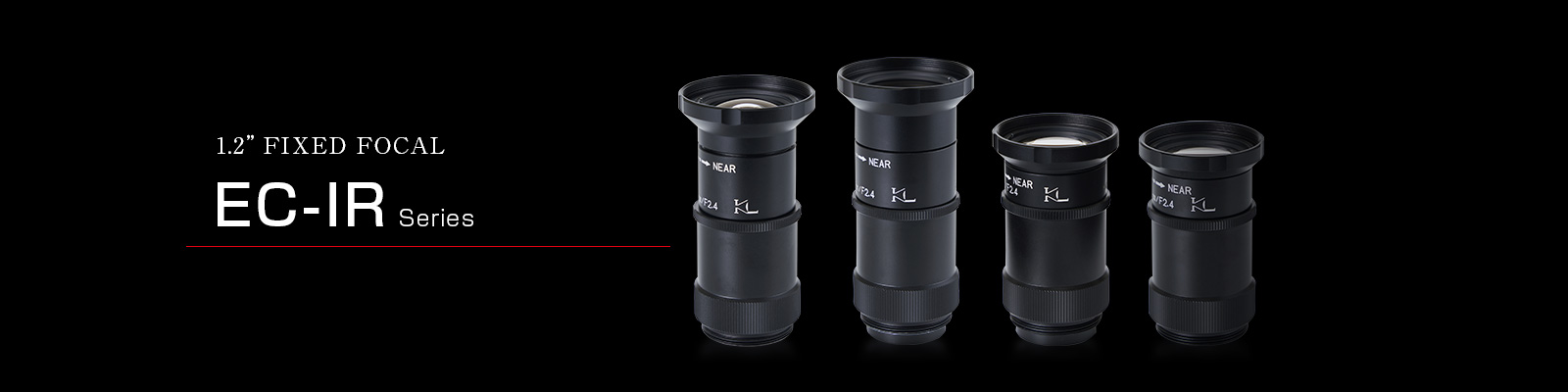

EC-IR Series
| Model | Format Size (Inch) | Focal Length | Iris Range (F-stop) |
Focusing Range (m) | Mount | Field Angle(H×V) | Size(mm)(∞) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4/3 | 1.2 | 1.1 | 1 | 1/1.2 | 2/3 | 1/1.8 | 1/2 | 1/3 | |||||||
| LM16EC-IR | - | ● | ● | ● | ● | ● | ● | ● | ● | 16 | F2.4〜F8 | 0.5〜∞ | C | 52.4×40.0 | Φ36.0×64.8 |
| LM25EC-IR | - | ● | ● | ● | ● | ● | ● | ● | ● | 25 | F2.4〜F8 | 0.5〜∞ | C | 34.9×26.1 | Φ36.0×68.4 |
| LM35EC-IR | - | ● | ● | ● | ● | ● | ● | ● | ● | 35 | F2.4〜F8 | 0.5〜∞ | C | 25.0×18.7 | Φ33.0×52.9 |
| LM50EC-IR | - | ● | ● | ● | ● | ● | ● | ● | ● | 50 | F2.4〜F8 | 0.5〜∞ | C | 17.5×13.1 | Φ33.0×56.1 |
Feature
- Suitable for 1.2”,24MP sensor
- Correct focus shift from visible to NIR
- Can be used for various applications such as ITS and FA.
- Interchangeable Iris Plates
- Two way reversible nut is utilized instead of thumb screws in order to tightly lock the focus adjustment ring in place.
- Lineup of 4 focal lengths for 16mm/25mm/35mm/50mm
