0.005 Lux Color SC200PK1C

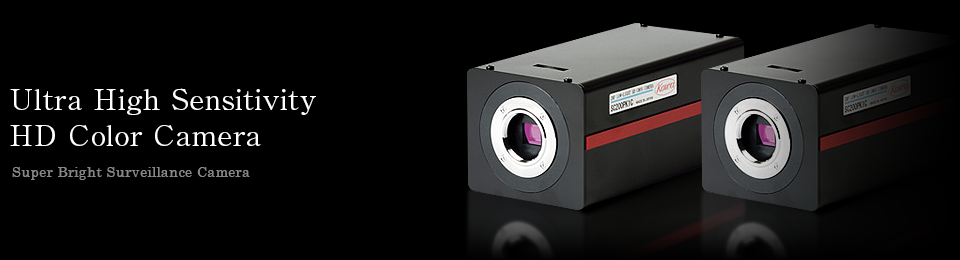

SC200PK1CDesigned for high end surveillance applications where high resolution color images are required, even in very low light areas.
Our 60mm/F0.8 5MP lens is 6 times brighter than any standard 50mm/F2.0 lens in the market.
The SC200PK1C provides an 30fps color image even at 0.005 Lux, the excellent sensitivity of this camera is comparable to the EMCCD, the currently the highest sensitive CCD type camera in the market.
erefore the combination of our 60mm/F0.8 5MP lens and the SC200PK1C provides the excellent bright color image in low light conditions.
2/3” CMOS 2MP Color 0.005 Lux
| Imaging Device | 2/3” CMOS |
|---|---|
| Valid Pixels | Approx 2M pixels |
| Pixel Size | 5.0µm |
| Scanning Method | Progressive |
| Minimum Illumination | 0.005Lux (F1.4) 30fps |
| S/N | More than 50dB |
| Synchronization | Internal/External |
| Gain | 0-72dB |
| Shutter Type | Rolling Shutter |
| Lens Mount | CS |
| Iris Control | DC |
| Day & Night | IR Cut Filter ON/OFF |
| Video Output | HD:HD-SDI / SD：NTSC, PAL |
| Output Format | 1920x1080 1280x720 29.97 30 60 25 50 |
| Remote Control | RS-485 |
| Input Voltage | DC12V |
| Power Consumption | Lower than 7W |
| Size (mm) | 78(W)x66(H)x146(D) |
| Weight | 600g |
